12v to 19v converter
RCNUN 12V TO 24V 19V 1A 3A 5A 10A 12A 15A 20A Step-up Boost DC DC Converter 12 Volt to 19 Volt Car Laptop Power Supply Charger
1pc 2A DC-DC Boost Step Up Volt Converter Power Supply 2V-24V To 3V 5V 6V 9V 12V 19V
Description:
Input voltage: DC2-24V
Output voltage: 3-28V
Output current: peak 2A
Size:3.2cmx1.6cm(1.26"x0.63")
Package include:
1/2Pcs step up volt converter power
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
12V to 19V 3A 5A 8A 10A 15A 20A 30A Step Up DC DC Converter 12 Volt to 28 Volt Boost DC-DC Voltage Regulator for Car Laptop

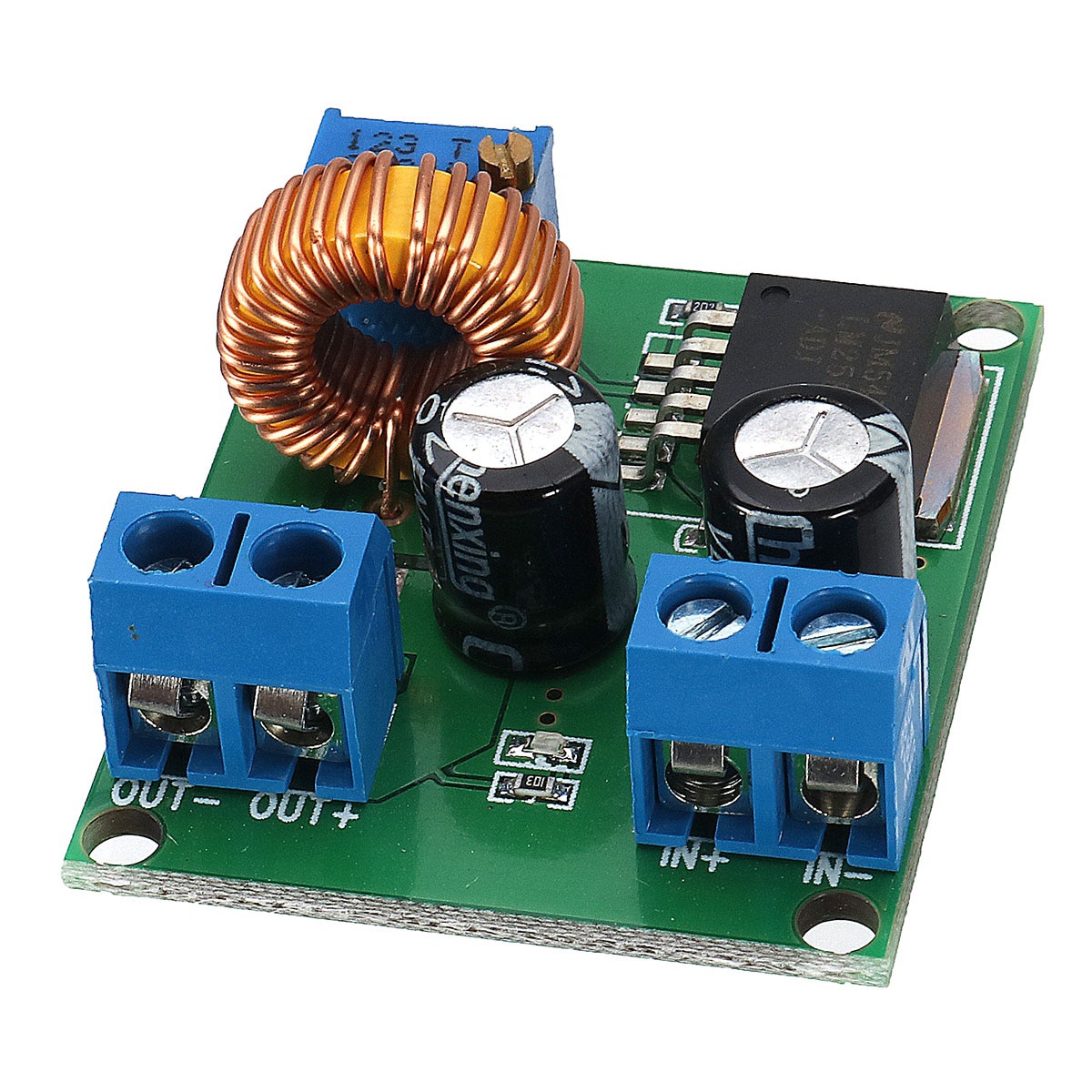

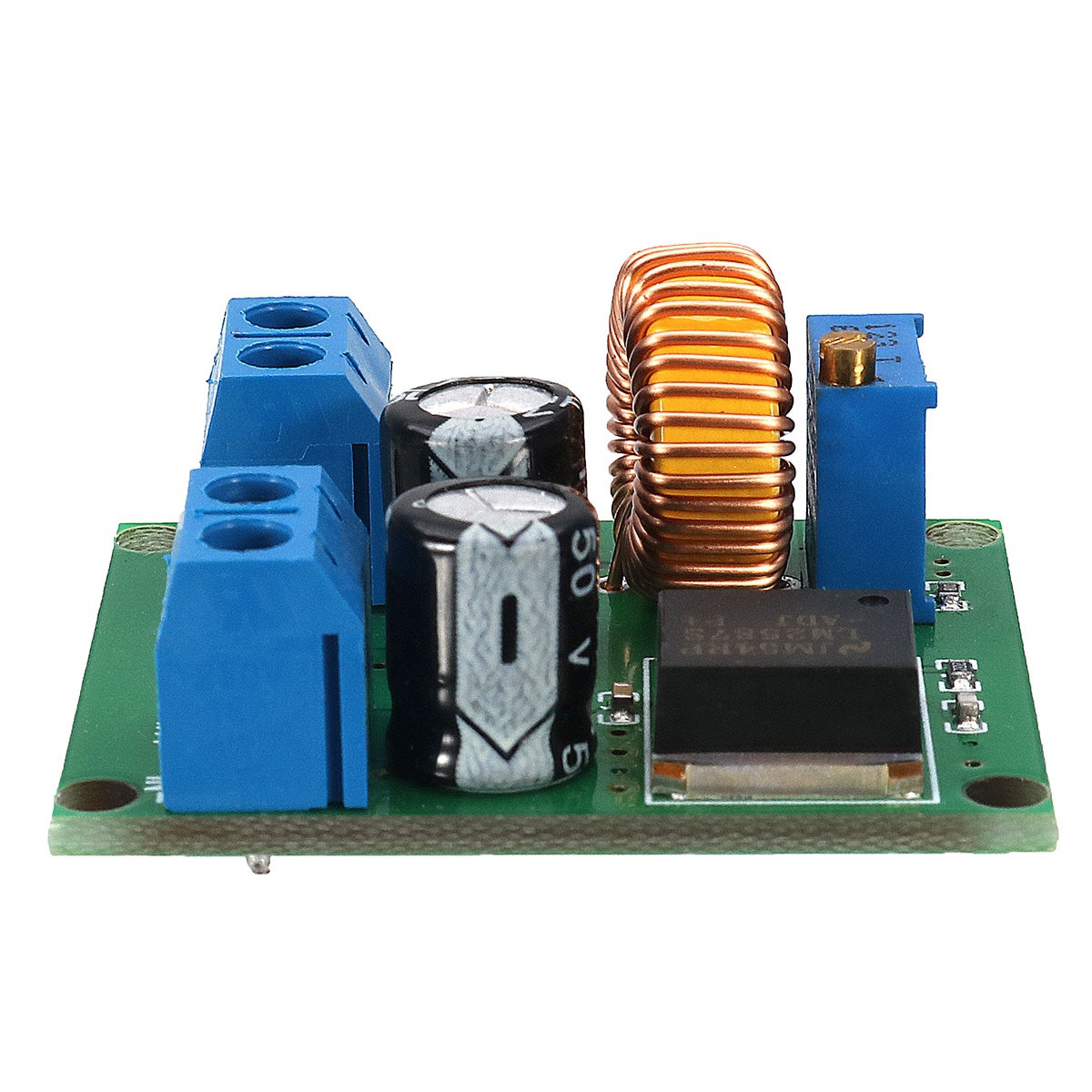

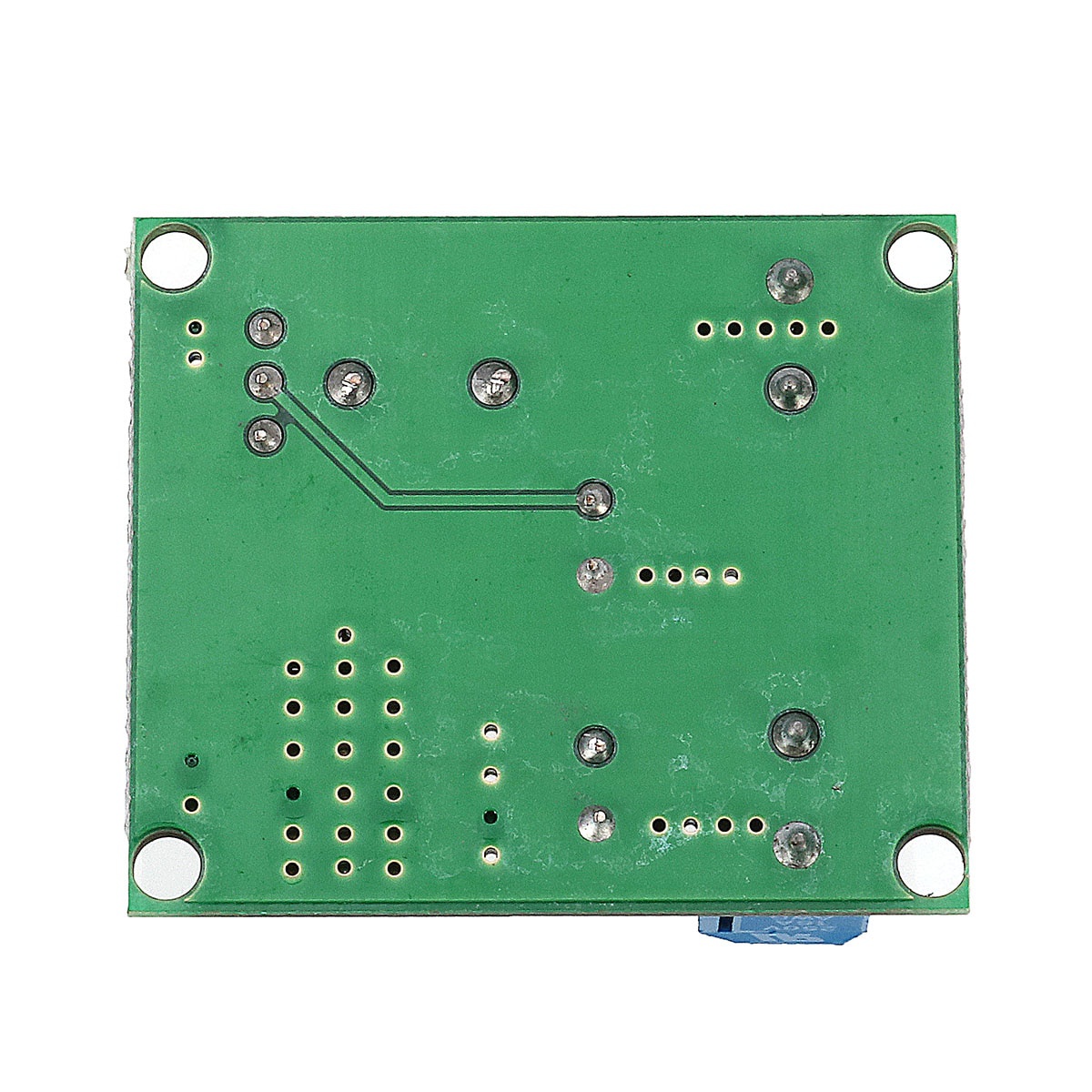

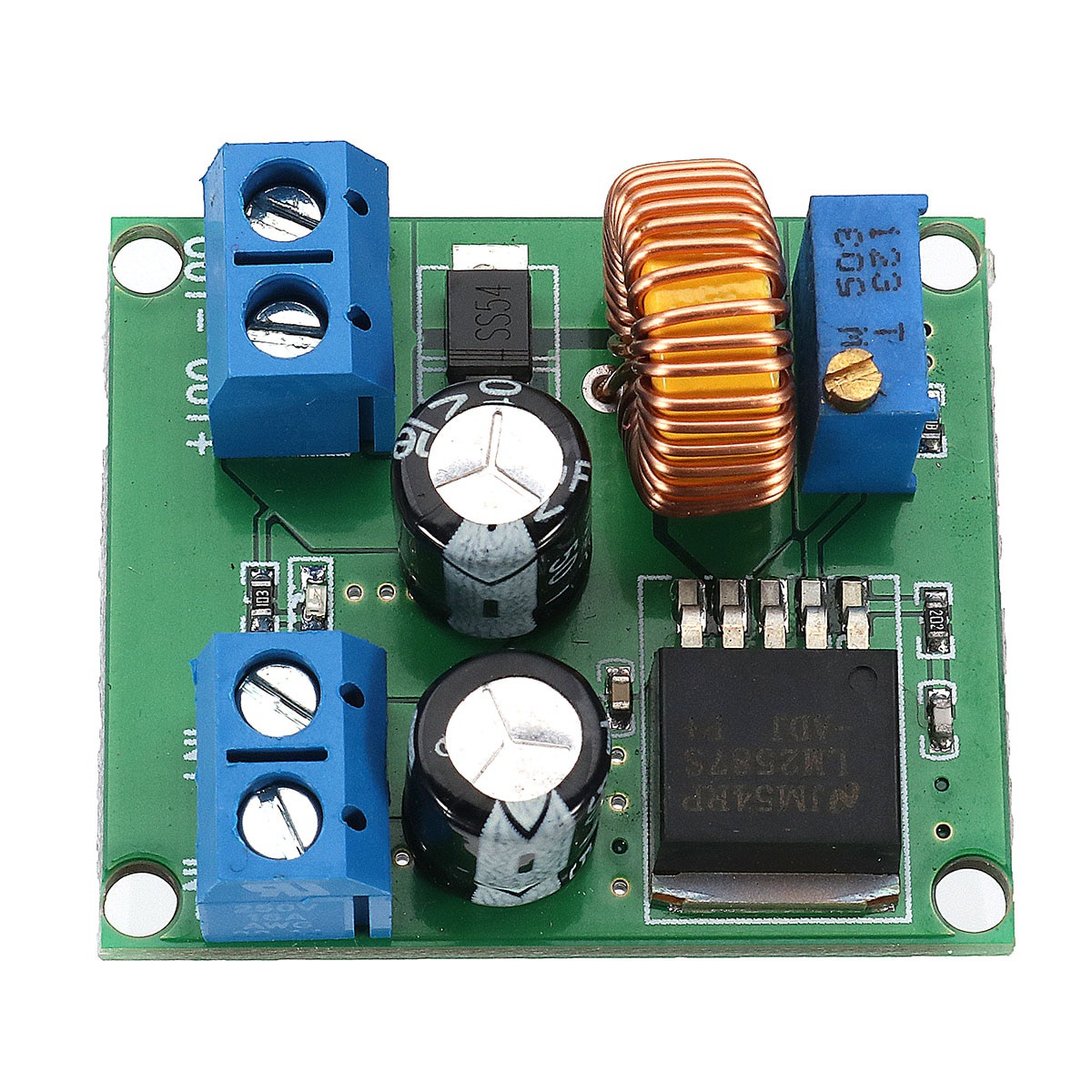

DC-DC 3V-35V To 4V-40V Adjustable Step Up Power Module 3V 5V 12V 19V 24V 30V 36V Boost Converter
Input: 3V - 35V
Output: 4V - 40V adjustable
Efficiency: 94% (MAX)
Module size: 37mm x 32mm x 15mm (L x W x H)
Operating temperature: -40 ℃ - 85 ℃
Load capacity: 80W (MAX)
Mode of connection: Wiring terminals are free of soldering, IN is input, OUT is output
Note: The smaller the voltage difference between input and output voltage is, the greater the load capacity is,
the higher the efficiency is.
Package included:
1 x DC-DC 3V - 35V to 4V - 40V adjustable step up power module
Buck Converter 200W 15A DC-DC 8-60V 48V TO 1-36V 5V 12V 24V 19V Buck Converter Step-down Power Module
Buck Converter 200W 15A DC-DC 8-60V 48V TO 1-36V 5V 12V 24V 19V Buck Converter Step-down Power Module
Description:
200W DC-DC high voltage power synchronous buck module
8-60V wide voltage input, 1-36V stepless adjustable output
The maximum peak output current 15A
Perfect ultra-efficient circuit design up to 94% Low Ripple
Specifications:
Name: 200W adjustable synchronous buck module
Type: Non-isolated step-down module (BUCK)
Aluminum housing Size: 70 x 38 x 31mm / 27.5"x15" x12"
Input voltage: 8-55V (limit 60V, please leave allowance)
Output voltage: 1-36V continuously adjustable (the default output 12V)
Output Current: Normal 10A , MAX15A
Output power: natural cooling ventilated long-term power 100W
To enhance heat dissipation up to 200W
Such as long working hours, please note left margin and make the heat rise
Operating temperature: -10 to +85 degrees
Operating frequency: 180KHz
Conversion efficiency: up to 94%
Overcurrent protection: Yes (the output current exceeds (15A) current maximum sample protection only)
Reverse polarity protection: (reverse does not burn)
Wiring: high current terminals, solderless, IN + input is positive, IN- is the input negative, OUT + positive output, OUT- output negative
Package Includes:
1 PCS 200W 15A DC-DC 8-60V 48V TO 1-36V 5V 12V 24V 19V Buck Converter Step-down Power Module
AC-DC 5V 700mA 12V 450mA 9V 500mA 3.5W Precision Buck Converter AC 220V to 5V DC step down Transformer power supply module
Precision 5v700ma 3.5W disconnector power module 220 to 5V power supply
Working temperature: - 20 ° C to 70 ° C, the advanced green gold capacitor can withstand 105 ° C for 10000 hours, more than 5 years at 70 ° C and about 20-50 years at room temperature (it is not recommended to use higher than 70 ° C). The output filter is a high-quality solid-state capacitor
Input voltage range: ac50v-277v dc70v-390v
No load power: < 0.05W, full load power: < 4W
Output characteristics: multiple modules with the same voltage can be used in parallel to meet the needs of small space and large current.
Output voltage: 5V + - 0.15v, no-load and full load, reduce 0.1V under light load, rise under heavy load, ripple of 50% load is 60mV
Output current: 5v0ma-700ma, enter the constant current working mode at full load
Test resistance: 7 Ω (4.9v) for 5V
Output indicator: Green
Output power: 3.5W, efficiency about 80%
Output protection: overvoltage, overcurrent, over temperature, over power, short circuit protection, etc.
Precision 12v300ma 3.5W disconnector power module
Working temperature: - 20 ° C to 70 ° C, the advanced green gold capacitor can withstand 105 ° C for 10000 hours, more than 5 years at 70 ° C and about 20-50 years at room temperature (it is not recommended to use higher than 70 ° C). The output filter is a high-quality solid-state capacitor
Input properties:
Input voltage range: ac50v-277v dc70v-390v
No load power: < 0.05W, full load power: < 4W
Output characteristics: multiple modules with the same voltage can be used in parallel to meet the needs of small space and large current.
Output voltage: 12V -0.05 + 0.3V, no-load and full load, light load reduces 0.1V, heavy load rises, ripple of 50% load is 100mV
Output current: 12v0ma-300ma, enter the constant current working mode at full load
Test resistance: 40 Ω (12V)
Output indicator: Green
Output power: 3.5W, efficiency about 80%
Output protection: overvoltage, overcurrent, over temperature, over power, short circuit protection, etc
SZDULI 12V to 19V 1A 3A 5A 8A 10A 15A 20A 30A step-up DC DC converter 9-18V to 19V step-up DC-DC regulator, suitable for car lap
AM21-5W AC-DC Power Supply Module Switching Power Supply 5W AC110V 220V 230V To DC 5V 12V 24V Mini Buck Converter
| Product model |
Input voltage |
Output voltage |
Output current |
Efficiency |
Installation |
| AM21-5W05C |
100~250V |
5V |
1000mA |
75% |
Module with lead wire |
| AM21-5W12C |
100~250V |
12V |
400mA |
78% |
Module with lead wire |
| AM21-5W24C |
100~250V |
24V |
200mA |
80% |
Module with lead wire |
| Types and parameters |
AM21-5W05C |
AM21-5W12C |
AM21-5W24C |
| Input voltage |
100~250Vdc |
100~250Vdc |
100~250Vdc |
| Output voltage |
5V |
12V |
24V |
| Persistent current |
1000mA |
4000mA |
200mA |
| Output power |
5w |
5W |
5W |
| Maximum efficiency |
75% |
78% |
80% |
| Ripple noise |
< 120mV |
||
| Work frequency |
60KHz |
||
| Work temperature |
-40 ~ +85℃ |
||
| Working humidity |
20 ~ 90RH% |
||
| Storage temperature |
-40 ~ +85℃ |
||
| Storage humidity |
10 ~ 90RH% |
||
| Static power |
< 1 mA/240V |
||
| compressive strength test |
I/P-O/P:3000KVAC |
||
| Insulation impedance |
I/P-O/P:100M ohms/500VDC at 25°C |
||
| Average service life |
50000 hours |
||
| Pin name |
Direction |
Use |
| N |
Input |
AC power supply input range:100-250V, exceed 250V will cause permanent damage to the module. |
| L |
Input |
AC power supply input range:100-250V, exceed250V will cause permanent damage to the module. |
| - |
Output |
DC output, power supply GND. |
| + |
Output |
DC input, power supply is positive |
Free Shipping 12V to 19V 24V 3A 5A 8A 10A 15A 20A Boost DC DC Converter Regulator 12 Volt to 19 Volt Car Laptop Power Supply
12V to 19V DC boost module 12V to 19V car converter 12V to 19V variable voltage regulated power supply
Product specifications
Item Dimension
product details
Wiring diagram
Application Scope
Products Show
Company Profile
Shipping&Payment
FAQ
